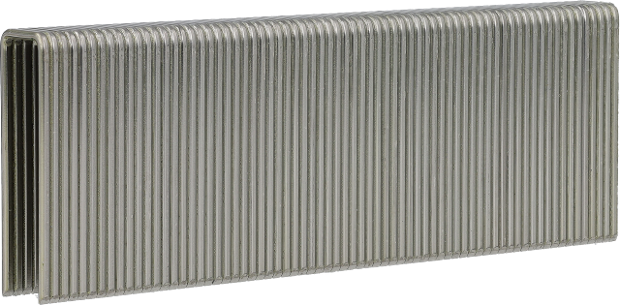

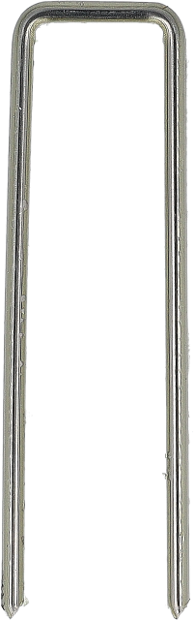

N-hakanen 38mm

Klikkaa suurentaaksesi kuvaa

Kuvaus

N-hakanen AISI304

Lue lisää Lue vähemmän

Normin versio EN 14592:2008+A1:2012

Eritelmät

Identifiointi

Nimike: N17BGA
GTIN: 8715274006260

Tekniset tiedot

Sidontakulma: 0 °
Sidostyyppi: Liimasidottu
Lankamateriaalli: Ruostumaton teräs AISI 304
Gauge: 16

Kiinnnittimen tiedot

Pinnoite: Pinnoittamaton/Kirkas
Käyttökohde: Ulkotilat
Kärjen tyyppi: Taltta
teroituskulma: 70 °
Hakasen tyyppi: Hakaset Heavy
Hakasen paksuus: 1.4 mm
Hakasen langan vahvuus: 1.51 mm
Hakasen selän nimellinen leveys: 10.6 mm
Hakasen sisäpuolen leveys: 7.67 mm
Hakassarjan malli: N-hakanen
Kamman/rullan kiinnikkeiden määrä: 69 - 71
Hakasen nimellinen pituus: 38.0 mm

CE merkinnät

Veto kannan läpi: 41.1 N/mm²
CE-kiinniketyyppi: Poikkileikkaukseltaan ympyrän muotoinen hakanen
DOP No: N17BGA
Käyttöluokka: 3
Pinnoitteen tyyppi: Pinnoite tyyppi 3
Pinnoitetun osan pituus: 38.0 mm
Taivutusmomentti: 640.0 Nmm
Langan vetolujuus: 850.0 N/mm²
Normin versio: EN 14592:2008+A1:2012
Ulosvetoarvo: 5.1 N/mm²

Muut kuin tekniset tiedot

Pakkauksen määrä: 10000

Logistiset tiedot

Nettopaino: 11.39 kg

Vastaavat työkalut

Lataukset

N17BGA_fi_CommercialProductSheet_1.4_1748296419946 PDF 1 Mb
N17BGA_fi_DeclarationOfPerformanceDoP_1.0eu_1748296483620 PDF 60 Kb
