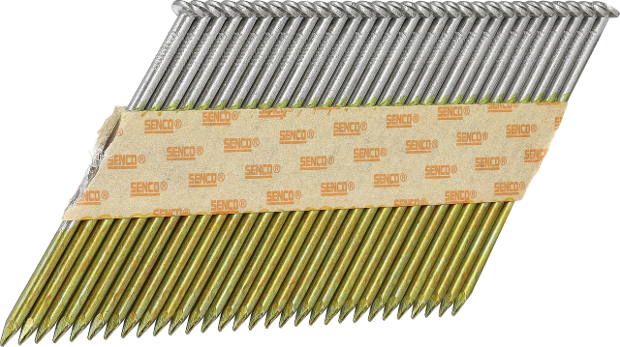

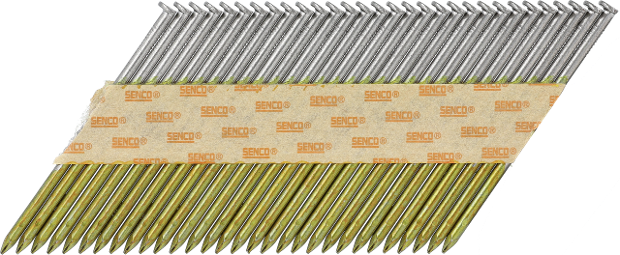

GC sileä runkonaula 2,87x55mm

Klikkaa suurentaaksesi kuvaa

Kuvaus

2,87mm smooth stripnail, bright basic, Sencoted

Lue lisää Lue vähemmän

Normin versio EN 14592:2008+A1:2012

Eritelmät

Identifiointi

Nimike: GC52APBKR
GTIN: 8715274047973

Tekniset tiedot

Sidontakulma: 34 °
Sidostyyppi: Paperiteippisidottu
Lankamateriaalli: hiiliteräs, vakiokarkaisu

Kiinnnittimen tiedot

Viimeistely: Kirkas, vakiovetolujuus
Pinnoite: Sencoted-liimapinnoite
Käyttökohde: Kuivat sisätilat
Naulan tyyppi: Lipasnaula, D-kanta
Naulaun kantamalli: D-kanta
Naulaprofiilin tyyppi: Sileävartinen
Kärjen tyyppi: Timantti
teroituskulma: 40 °
Naulan halkaisija: 2.87 mm
Kamman/rullan kiinnikkeiden määrä: 29 - 31
Naulan pituus: 55.0 mm

CE merkinnät

Veto kannan läpi: 27.12 N/mm²
CE-kiinniketyyppi: Poikkileikkaukseltaan ympyrän muotoinen, sileävartinen naula
DOP No: GC52APBKR
Käyttöluokka: 1
Pinnoitteen tyyppi: Pinnoite tyyppi 3
Pinnoitetun osan pituus: 31.0 mm
Kannan poikkileikkausalue: 30.0 mm
Taivutusmomentti: 3054.0 Nmm
Langan vetolujuus: 695.0 N/mm²
Normin versio: EN 14592:2008+A1:2012
Ulosvetoarvo: 2.45 N/mm²

Muut kuin tekniset tiedot

Pakkauksen määrä: 2000

Logistiset tiedot

Nettopaino: 5.72 kg

Vastaavat työkalut

Lataukset

GC52APBKR_fi_CommercialProductSheet_1.6_1752213672100 PDF 1 Mb
DOP VS-CPR-201305-S026 PDF 188 Kb
GC52APBKR_fi_DeclarationOfPerformanceDoP_1.0eu_1729015901319 PDF 61 Kb
