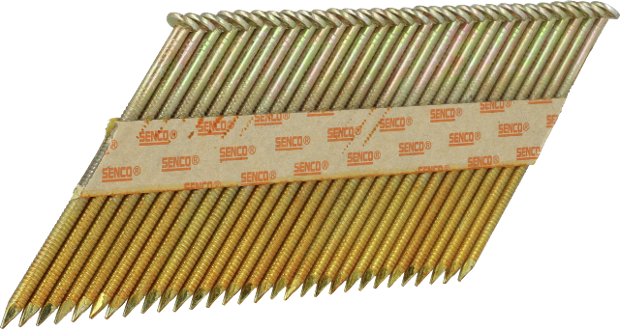

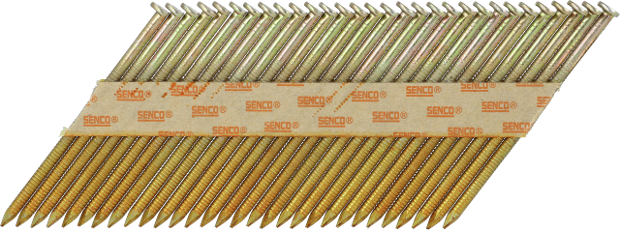

GE kampa runkonaula 2,87x60mm

Klikkaa suurentaaksesi kuvaa

Kuvaus

2,87mm kampapintainen lipasnaula, sinkitty, Sencoted

Lue lisää Lue vähemmän

Normin versio EN 14592:2008+A1:2012

Eritelmät

Identifiointi

Nimike: GE54AABKR
GTIN: 8715274152509

Tekniset tiedot

Sidontakulma: 34 °
Sidostyyppi: Paperiteippisidottu
Lankamateriaalli: hiiliteräs, vakiokarkaisu

Kiinnnittimen tiedot

Viimeistely: tavanomainen sinkitys
Pinnoite: Sencoted-liimapinnoite
Käyttökohde: Kuivat sisätilat
Naulan tyyppi: Lipasnaula, D-kanta
Naulaun kantamalli: D-kanta
Naulaprofiilin tyyppi: Kampapintainen
Kärjen tyyppi: Timantti
teroituskulma: 40 °
Naulan halkaisija: 2.87 mm
Kamman/rullan kiinnikkeiden määrä: 29 - 31
Naulan pituus: 60.0 mm

CE merkinnät

Veto kannan läpi: 20.3 N/mm²
CE-kiinniketyyppi: Poikkileikkaukseltaan ympyrän muotoinen, kampapintainen naula
DOP No: GE54AABKR
Suojaustaso mikroneina: ≤5
Käyttöluokka: 1
Pinnoitteen tyyppi: Pinnoite tyyppi 3
Pinnoitetun osan pituus: 38.0 mm
Kannan poikkileikkausalue: 30.0 mm
Kierteisen osan pituus: 40.0 mm
Taivutusmomentti: 2525.0 Nmm
Langan vetolujuus: 695.0 N/mm²
Normin versio: EN 14592:2008+A1:2012
Ulosvetoarvo: 7.5 N/mm²

Muut kuin tekniset tiedot

Pakkauksen määrä: 2000

Logistiset tiedot

Nettopaino: 6.77 kg

Vastaavat työkalut

Lataukset

GE54AABKR_fi_CommercialProductSheet_1.8_1752324462217 PDF 1 Mb
DOP VS-CPR-201305-S027 PDF 191 Kb
GE54AABKR_fi_DeclarationOfPerformanceDoP_1.0eu_1729235243818 PDF 61 Kb
