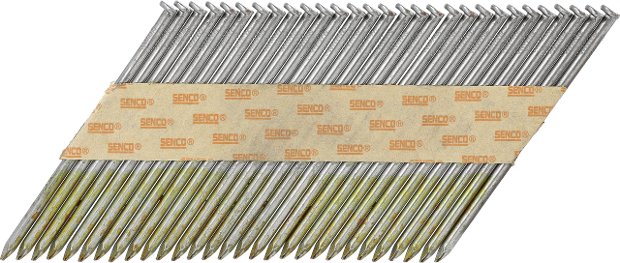

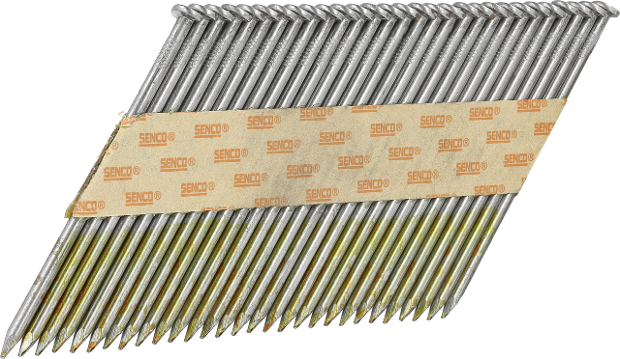

HC sileä runkonaula 3,1x90mm

Klikkaa suurentaaksesi kuvaa

Kuvaus

3,1 mm sileä lipasnaula, kirkas, Sencoted

Lue lisää Lue vähemmän

Normin versio EN 14592:2008+A1:2012

Eritelmät

Identifiointi

Nimike: HC59APBKR
GTIN: 8715274028576

Tekniset tiedot

Sidontakulma: 34 °
Sidostyyppi: Paperiteippisidottu
Lankamateriaalli: hiiliteräs, vakiokarkaisu

Kiinnnittimen tiedot

Viimeistely: Kirkas, vakiovetolujuus
Pinnoite: Sencoted-liimapinnoite
Käyttökohde: Kuivat sisätilat
Naulan tyyppi: Lipasnaula, D-kanta
Naulaun kantamalli: D-kanta
Naulaprofiilin tyyppi: Sileävartinen
Kärjen tyyppi: Timantti
teroituskulma: 40 °
Naulan halkaisija: 3.1 mm
Kamman/rullan kiinnikkeiden määrä: 29 - 31
Naulan pituus: 90.0 mm

CE merkinnät

Veto kannan läpi: 30.1 N/mm²
CE-kiinniketyyppi: Poikkileikkaukseltaan ympyrän muotoinen, sileävartinen naula
DOP No: HC59APBKR
Käyttöluokka: 1
Pinnoitteen tyyppi: Pinnoite tyyppi 3
Pinnoitetun osan pituus: 60.0 mm
Kannan poikkileikkausalue: 30.0 mm
Taivutusmomentti: 2570.0 Nmm
Langan vetolujuus: 633.0 N/mm²
Normin versio: EN 14592:2008+A1:2012
Ulosvetoarvo: 3.1 N/mm²

Muut kuin tekniset tiedot

Pakkauksen määrä: 2000

Logistiset tiedot

Nettopaino: 10.53 kg

Vastaavat työkalut

Lataukset

HC59APBKR_fi_CommercialProductSheet_1.6_1751558000951 PDF 1 Mb
DOP VS-CPR-201305-S028 PDF 115 Kb
HC59APBKR_fi_DeclarationOfPerformanceDoP_1.0eu_1729155774314 PDF 60 Kb
