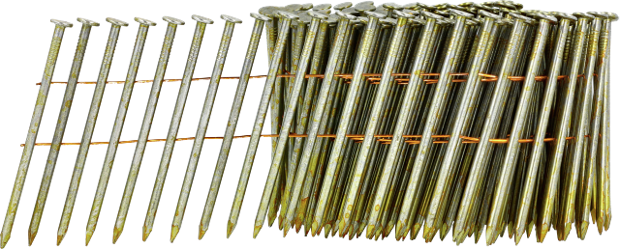

2,87mm tasarulla sileä rullanaula, kirkas, Sencoted

Klikkaa suurentaaksesi kuvaa

Kuvaus

2,87mm tasarulla sileä rullanaula, kirkas, Sencoted

Lue lisää Lue vähemmän

Harmonized standard EN 14592:2008+A1:2012

Eritelmät

Identifiointi

Article number: GD27APBF
GTIN: 8715274016375

Tekniset tiedot

Collation angle: 16 °
Wounding type: Flat
Collation type: Wire collated
Wire material: Carbon steel standard tensile

Kiinnnittimen tiedot

Finish: Bright basic standard tensile
Coating: Sencoted
Application environment: Indoor
Type of nail: Coilnails
Nail shank type: Smooth shank
Point type: Diamond
Pointangle: 40 °
Pitch min: 8.4 mm
Pitch max: 8.4 mm
Max outerdiamer coil: 122 mm
Nail diameter: 2.87 mm
Amount fasteners on strip/coil: 250 - 250
Nail length: 75.0 mm

CE merkinnät

Characteristic head pull through parameter: 24.4 N/mm²
CE fastener type: Round cross-section plain shank nail
DOP No: GD27APBF
Protection level in micron: 0
Service class: 1
Coating type: Coating type 3
Coating length: 55.5 mm
Head cross sectional area: 36.0 mm
Characteristic yield moment: 2698.0 Nmm
Characteristic tensile strength: 695.0 N/mm²
Harmonized standard: EN 14592:2008+A1:2012
Characteristic withdrawal parameter: 3.4 N/mm²

Muut kuin tekniset tiedot

Package quantity: 6750

Logistiset tiedot

Net weight: 26.42 kg

Vastaavat työkalut

Lataukset

GD27APBF_fi_CommercialProductSheet_1.9_1748504058453 PDF 1 Mb
DOP VS-CPR-201305-S009 PDF 163 Kb
GD27APBF_fi_DeclarationOfPerformanceDoP_1.0eu_1748504162269 PDF 61 Kb
