GL rullanaula 2,87mmx60mm

Klikkaa suurentaaksesi kuvaa

Kuvaus

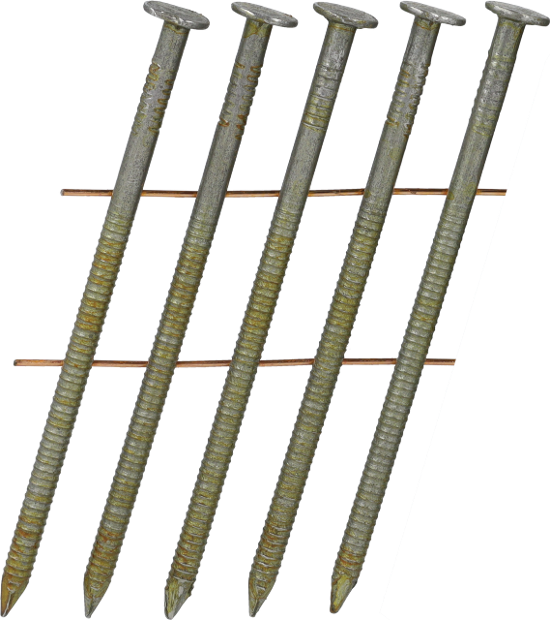

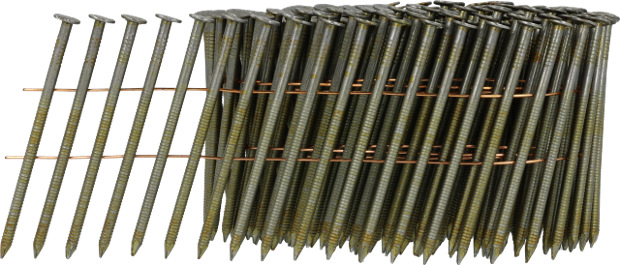

2,87mm tasarulla kampapintainen rullanaula, kirkas, Sencoted

Lue lisää Lue vähemmän

Normin versio EN 14592:2008+A1:2012

Eritelmät

Identifiointi

Nimike: GL24APBF
GTIN: 8715274051581

Tekniset tiedot

Sidontakulma: 16 °
Sidostyyppi: Tasarulla
Sidostyyppi: Lankasidottu
Lankamateriaalli: hiiliteräs, vakiokarkaisu

Kiinnnittimen tiedot

Viimeistely: Kirkas, vakiovetolujuus
Pinnoite: Sencoted-liimapinnoite
Käyttökohde: Kuivat sisätilat
Naulan tyyppi: Rullanaulat
Naulaprofiilin tyyppi: Kampapintainen
Kärjen tyyppi: Timantti
teroituskulma: 40 °
Minimietäisyys: 8.4 mm
Maksimietäisyys: 8.4 mm
Rullan max. ulkohalkaisija: 122 mm
Naulan halkaisija: 2.87 mm
Kamman/rullan kiinnikkeiden määrä: 250 - 250
Naulan pituus: 60.0 mm

CE merkinnät

Veto kannan läpi: 27.12 N/mm²
CE-kiinniketyyppi: Poikkileikkaukseltaan ympyrän muotoinen, kampapintainen naula
DOP No: GL24APBF
Suojaustaso mikroneina: 0
Käyttöluokka: 1
Pinnoitteen tyyppi: Pinnoite tyyppi 3
Pinnoitetun osan pituus: 46.5 mm
Kannan poikkileikkausalue: 36.0 mm
Kierteisen osan pituus: 46.0 mm
Taivutusmomentti: 3054.0 Nmm
Langan vetolujuus: 695.0 N/mm²
Normin versio: EN 14592:2008+A1:2012
Ulosvetoarvo: 8.5 N/mm²

Muut kuin tekniset tiedot

Pakkauksen määrä: 6750

Logistiset tiedot

Nettopaino: 24.2 kg

Vastaavat työkalut

Lataukset

GL24APBF_fi_CommercialProductSheet_1.8_1752232218900 PDF 1 Mb
DOP VS-CPR-201305-S010 PDF 123 Kb
GL24APBF_fi_DeclarationOfPerformanceDoP_1.0eu_1748465715601 PDF 61 Kb
