SCN34 Rullanaulain
- Tavaran numero
- SCN34
- Smooth shank nail length
- 25 - 50 mm
- Smooth shank nail diameter
- 1,6 - 2,1 mm
- Collation angle
- 16 °
- Collation type
- Wire collated
- Serie
- Pro

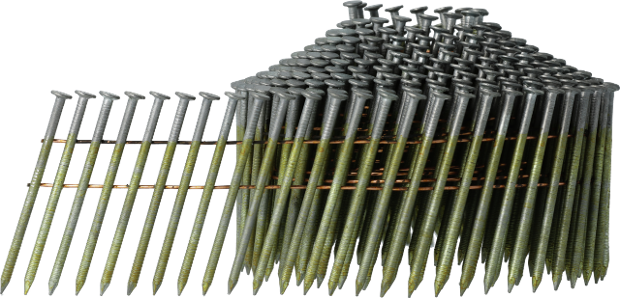

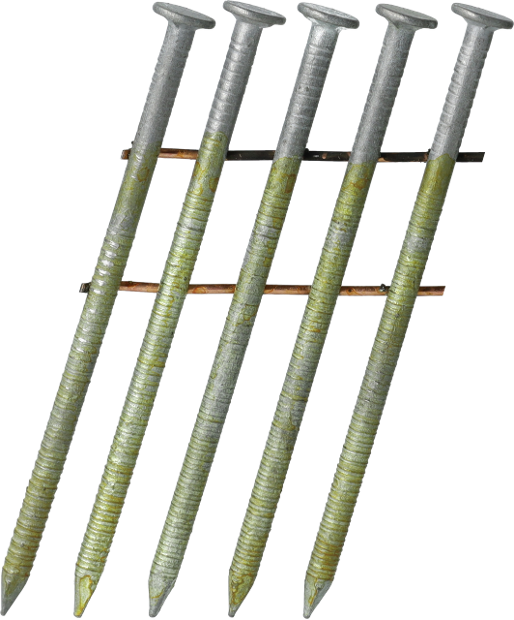

2,1 mm kartiomainen kampapintainen rullanaula, kuumasinkitty, Sencoted
Klikkaa suurentaaksesi kuvaa
Kuvaus
2,1 mm kartiomainen kampapintainen rullanaula, kuumasinkitty, Sencoted
- Harmonized standard EN 14592:2008+A1:2012
Eritelmät
Identifiointi
- Article number
- SE17ASBV
- GTIN
- 8715274017235
Tekniset tiedot
- Collation angle
- 16 °
- Wounding type
- Conical
- Collation type
- Wire collated
- Wire material
- Carbon steel standard tensile
Kiinnnittimen tiedot
- Finish
- Hot-Dipped galvanised 3
- Coating
- Sencoted
- Application environment
- Outdoor
- Type of nail
- Coilnails
- Nail shank type
- Ring shank
- Point type
- Diamond
- Pointangle
- 36 °
- Pitch min
- 6.2 mm
- Pitch max
- 6.2 mm
- Max outerdiamer coil
- 100 mm
- Nail diameter
- 2.1 mm
- Amount fasteners on strip/coil
- 375 - 375
- Nail length
- 38.0 mm
CE merkinnät
- Characteristic head pull through parameter
- 25.0 N/mm²
- CE fastener type
- Round cross-section ring shank nail
- DOP No
- SE17ASBV
- Protection level in micron
- 55
- Service class
- 3
- Coating type
- Coating type 3
- Head cross sectional area
- 19.0 mm
- Threaded/profiled length
- 28.5 mm
- Characteristic yield moment
- 1060.0 Nmm
- Characteristic tensile strength
- 700.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 6.2 N/mm²
Muut kuin tekniset tiedot
- Package quantity
- 15750
Logistiset tiedot
- Net weight
- 17.0 kg
