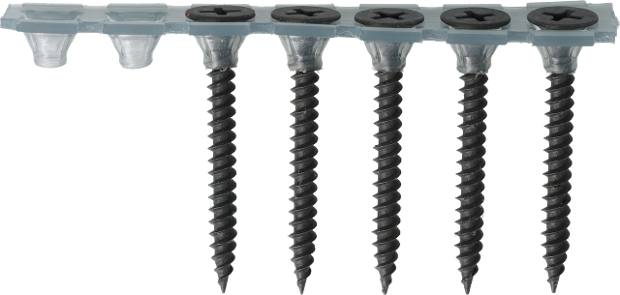

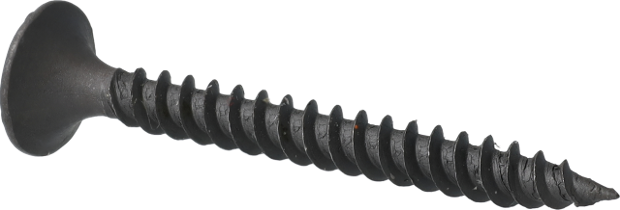

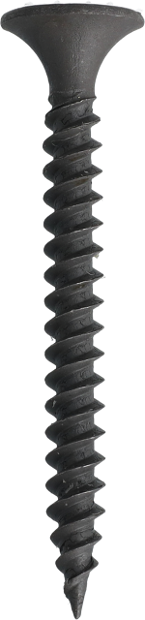

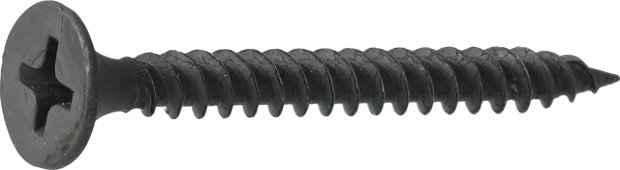

Kipsilevyruuvi kevyeen teräkseen PH2 fosfatoitu 3,5x35mm

Klikkaa suurentaaksesi kuvaa

Kuvaus

Kipsilevyruuvi peltirankaan, fosfatoitu

Lue lisää Lue vähemmän

Normin versio EN 14566:2008+A1:2009

Eritelmät

Identifiointi

Nimike: 35B35MP
GTIN: 8715274015545

Tekniset tiedot

Sidostyyppi: Muovisidottu
Lankamateriaalli: hiiliteräs, vakiokarkaisu
Kierrosnopeus: 3300, 4000, 5000 RPM

Kiinnnittimen tiedot

Viimeistely: Fosfatoitu
Käyttökohde: Kuivat sisätilat
Kärjen tyyppi: Terävä
teroituskulma: 23 °
Ruuvin kantaprofiili: Trumpettikanta
Ruuvikannan tyyppi: Philips 2
Ruuvin kierteen tyyppi: Tiuha
Kamman/rullan kiinnikkeiden määrä: 50 - 50
Ruuvin pituus: 35.0 mm
Ruuvin halkaisija: 3.5 mm

CE merkinnät

DOP No: 35B35MP
Käyttöluokka: 1
Kierteen sisähalkaisija: 2.65 mm
Kierteisen osan pituus: 30.0 mm
Normin versio: EN 14566:2008+A1:2009

Muut kuin tekniset tiedot

Pakkauksen määrä: 1000

Logistiset tiedot

Nettopaino: 1.83 kg

Vastaavat työkalut

Lataukset

35B35MP_fi_CommercialProductSheet_1.3_1750113900715 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
35B35MP_fi_DeclarationOfPerformanceDoP_1.2eu_1750113983425 PDF 57 Kb
