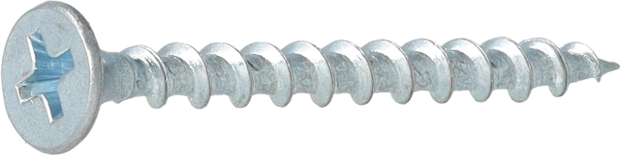

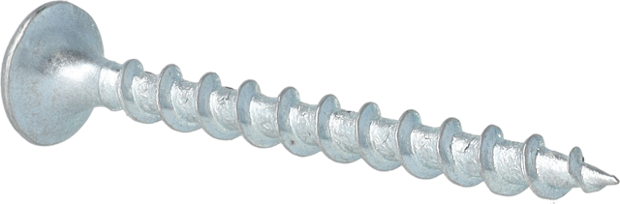

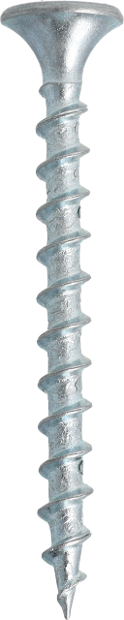

Kipsilevyruuvi puuhun PH2 clear zinc 3,9x40mm

Klikkaa suurentaaksesi kuvaa

Kuvaus

Kipsilevyruuvi puuhun, sähkösinkitty

Lue lisää Lue vähemmän

Normin versio EN 14566:2008+A1:2009

Eritelmät

Identifiointi

Nimike: 39A40MCN
GTIN: 8715274251691

Tekniset tiedot

Sidostyyppi: Muovisidottu
Lankamateriaalli: hiiliteräs, vakiokarkaisu
Kierrosnopeus: 3300, 4000, 5000 RPM

Kiinnnittimen tiedot

Viimeistely: Clear zinc
Käyttökohde: Kuivat sisätilat
Kärjen tyyppi: Terävä
teroituskulma: 23 °
Ruuvin kantaprofiili: Trumpettikanta
Ruuvikannan tyyppi: Philips 2
Ruuvin kierteen tyyppi: Harva
Kamman/rullan kiinnikkeiden määrä: 50 - 50
Ruuvin pituus: 40.0 mm
Ruuvin halkaisija: 3.9 mm

CE merkinnät

DOP No: 39A40MCN
Käyttöluokka: 1
Kierteen sisähalkaisija: 2.6 mm
Kierteisen osan pituus: 35.5 mm
Normin versio: EN 14566:2008+A1:2009

Muut kuin tekniset tiedot

Pakkauksen määrä: 4000

Vastaavat työkalut

Lataukset

39A40MCN_fi_CommercialProductSheet_1.4_1751494009142 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
39A40MCN_fi_DeclarationOfPerformanceDoP_1.1eu_1750106770194 PDF 58 Kb
