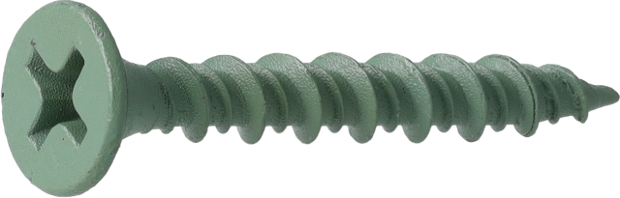

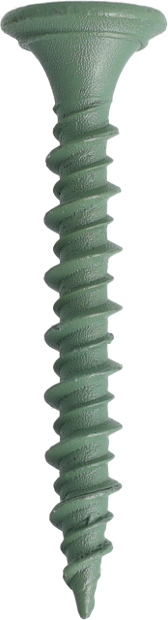

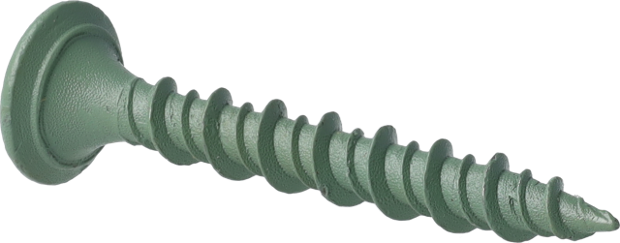

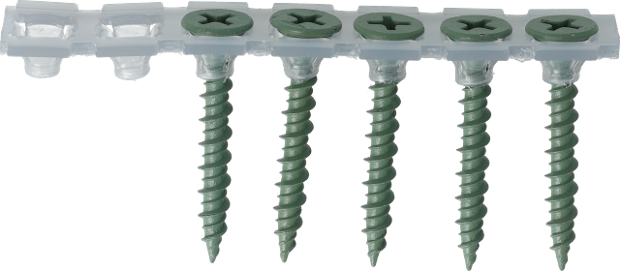

Kipsilevyruuvi puuhun tai kevyen teräkseen PH2 weatherex 3,9x30mm

Klikkaa suurentaaksesi kuvaa

Kuvaus

Kipsilevyruuvi puuhun tai peltirankaan, Weatherex II

Lue lisää Lue vähemmän

Normin versio EN 14566:2008+A1:2009

Eritelmät

Identifiointi

Nimike: 39S30MW
GTIN: 8715274023212

Tekniset tiedot

Sidostyyppi: Muovisidottu
Lankamateriaalli: hiiliteräs, vakiokarkaisu
Kierrosnopeus: 3300, 4000, 5000 RPM

Kiinnnittimen tiedot

Viimeistely: Weatherex II
Käyttökohde: Ulkotilat
Kärjen tyyppi: Terävä
teroituskulma: 23 °
Ruuvin kantaprofiili: Trumpettikanta
Ruuvikannan tyyppi: Philips 2
Ruuvin kierteen tyyppi: Hi-Lo
Kamman/rullan kiinnikkeiden määrä: 50 - 50
Ruuvin pituus: 30.0 mm
Ruuvin halkaisija: 3.9 mm

CE merkinnät

DOP No: 39S30MW
CE-merkinnässä ilmoitettu materiaali: Seostamaton teräs
Käyttöluokka: 3
Kierteen sisähalkaisija: 2.7 mm
Kierteisen osan pituus: 25.5 mm
Normin versio: EN 14566:2008+A1:2009

Muut kuin tekniset tiedot

Pakkauksen määrä: 1000

Logistiset tiedot

Nettopaino: 1.92 kg

Vastaavat työkalut

Lataukset

39S30MW_fi_CommercialProductSheet_1.8_1752224689274 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
39S30MW_fi_DeclarationOfPerformanceDoP_1.1eu_1750107208749 PDF 58 Kb
