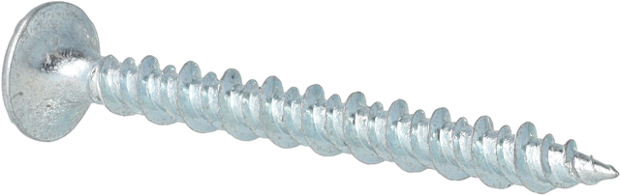

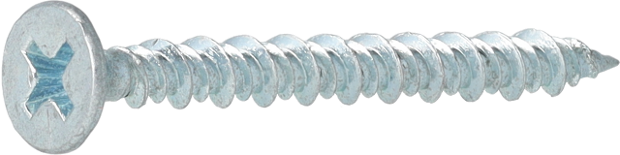

Puuruuvi raskaaseen teräkseen SQ2 weatherex 4,2x41mm

Klikkaa suurentaaksesi kuvaa

Kuvaus

Puuruuvi porakärki teräkseen, Weatherex II

Lue lisää Lue vähemmän

Käyttökohteet

Levytykset, puu-metalli sovellukset

Lue lisää Lue vähemmän

Normin versio EN 14566:2008+A1:2009

Eritelmät

Identifiointi

Nimike: 42GS41MW
GTIN: 8718035002075

Tekniset tiedot

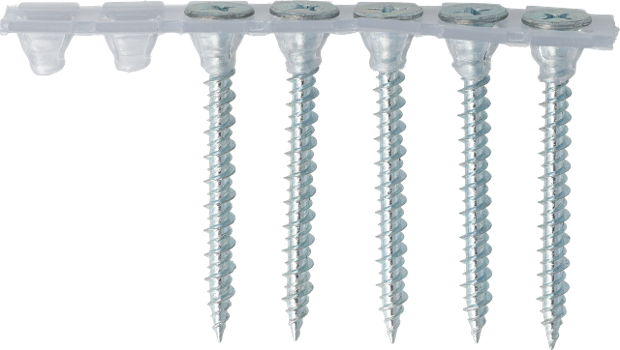

Sidostyyppi: Muovisidottu
Lankamateriaalli: hiiliteräs, vakiokarkaisu
Kierrosnopeus: 2300, 2500, 3000, 3300 RPM

Kiinnnittimen tiedot

Viimeistely: Weatherex II
Käyttökohde: Ulkotilat
Kärjen tyyppi: Itseporautuvat siivekkeet
teroituskulma: 110 °
Ruuvin kantaprofiili: Tasakanta 8 senkillä
Ruuvikannan tyyppi: Neliö 2
Ruuvin kierteen tyyppi: Tiuha
Kamman/rullan kiinnikkeiden määrä: 50 - 50
Ruuvin pituus: 41.0 mm
Ruuvin halkaisija: 4.2 mm

CE merkinnät

DOP No: 42GS41MW
CE-merkinnässä ilmoitettu materiaali: Seostamaton teräs
Käyttöluokka: 3
Kierteen sisähalkaisija: 3.5 mm
Kierteisen osan pituus: 29.3 mm
Normin versio: EN 14566:2008+A1:2009

Muut kuin tekniset tiedot

Pakkauksen määrä: 1000

Logistiset tiedot

Nettopaino: 3.5 kg

Vastaavat työkalut

Lataukset

42GS41MW_fi_CommercialProductSheet_1.10_1757436167777 PDF 1 Mb
42GS41MW_fi_DeclarationOfPerformanceDoP_1.2eu_1757436109617 PDF 58 Kb
