Puuruuvi porakärjellä teräkseen, sähkösinkitty

Klikkaa suurentaaksesi kuvaa

Kuvaus

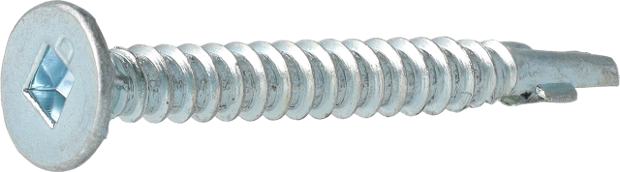

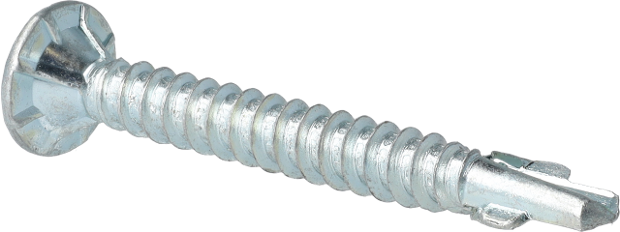

Puuruuvi porakärjellä teräkseen, sähkösinkitty

Lue lisää Lue vähemmän

Harmonized standard EN 14566:2008+A1:2009

Eritelmät

Identifiointi

Article number: 42GS65MC
GTIN: 8718035018441

Tekniset tiedot

Collation type: Plastic collated
Wire material: Carbon steel standard tensile
Rotations per minute: 2300, 2500, 3000, 3300 RPM

Kiinnnittimen tiedot

Finish: Clear zinc
Application environment: Indoor
Point type: Self drilling wings
Pointangle: 110 °
Screw head type: Flat with 8 nibs
Screw recess: Neliö 2
Screw thread type: Fine
Amount fasteners on strip/coil: 50 - 50
Screw length: 65.0 mm
Screw diameter: 4.2 mm

CE merkinnät

DOP No: 42GS65MC
Service class: 1
Inner threaded diameter: 3.5 mm
Threaded/profiled length: 43.3 mm
Harmonized standard: EN 14566:2008+A1:2009

Muut kuin tekniset tiedot

Package quantity: 1000

Logistiset tiedot

Net weight: 5.99 kg

Vastaavat työkalut

Lataukset

42GS65MC_fi_CommercialProductSheet_1.4_1750165807097 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
42GS65MC_fi_DeclarationOfPerformanceDoP_1.1eu_1750165879409 PDF 58 Kb
