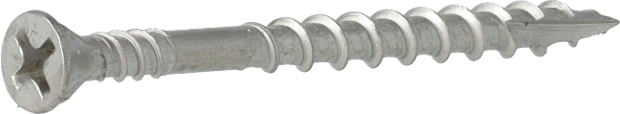

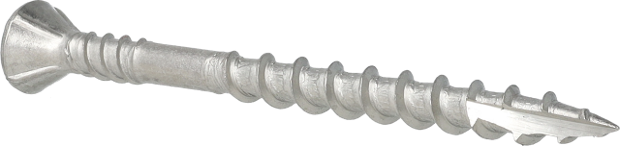

Nauharuuvi hobau PH2 ruostumaton teräs AISI 316 4,2x55mm

Klikkaa suurentaaksesi kuvaa

Kuvaus

Puulattiaruuvi puuhun, ruostumaton teräs A4

Lue lisää Lue vähemmän

Normin versio EN 14592:2008+A1:2012

Eritelmät

Identifiointi

Nimike: 42R55MX
GTIN: 8715274059297

Tekniset tiedot

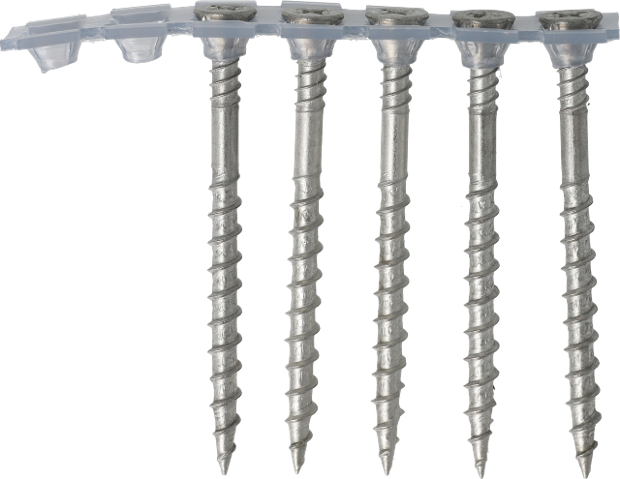

Sidostyyppi: Muovisidottu
Lankamateriaalli: Ruostumaton teräs AISI 316
Kierrosnopeus: 2300, 2500, 3000, 3300 RPM

Kiinnnittimen tiedot

Käyttökohde: Ulkotilat
Kärjen tyyppi: Tyypin 17 leikkava kärki
teroituskulma: 23 °
Ruuvin kantaprofiili: Pieni kanta 4 senkillä
Ruuvikannan tyyppi: Philips 2
Ruuvin kierteen tyyppi: 2/3 harva osakierre
Kamman/rullan kiinnikkeiden määrä: 50 - 50
Ruuvin pituus: 55.0 mm
Ruuvin halkaisija: 4.2 mm

CE merkinnät

Veto kannan läpi: 16.0 N/mm²
DOP No: 42R55MX
Käyttöluokka: 3
Kierteen sisähalkaisija: 3.15 mm
Kierteisen osan pituus: 36.0 mm
Taivutusmomentti: 2400.0 Nmm
Vääntöarvo: ≥ 1,5 N/mm
Vääntövastus: 1.88 Nm
Vääntövoima: 3.47 Nm
Langan kapsiteetti: 3200.0 N
Normin versio: EN 14592:2008+A1:2012
Ulosvetoarvo: 12.0 N/mm²

Muut kuin tekniset tiedot

Pakkauksen määrä: 1000

Logistiset tiedot

Nettopaino: 3.79 kg

Vastaavat työkalut

Lataukset

42R55MX_fi_CommercialProductSheet_1.10_1752247107696 PDF 1 Mb
42R55MX_fi_DeclarationOfPerformanceDoP_1.3eu_1750116888488 PDF 62 Kb
