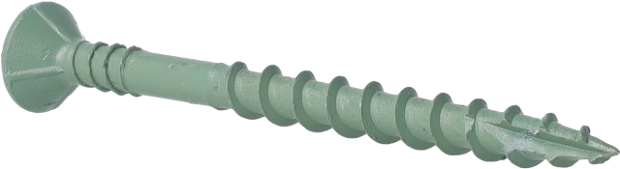

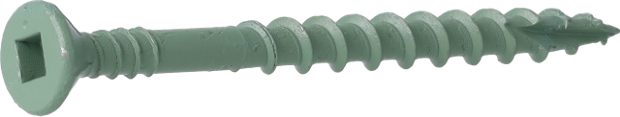

Puulattia-/terassiruuvi puhun SD25 weatherex 4,2x55mm

Klikkaa suurentaaksesi kuvaa

Kuvaus

Puulattia-/terassiruuvi puuhun, Weatherex II

Lue lisää Lue vähemmän

Normin versio EN 14592:2008+A1:2012

Eritelmät

Identifiointi

Nimike: 42W55MW
GTIN: 0741474208362

Tekniset tiedot

Sidostyyppi: Muovisidottu
Lankamateriaalli: hiiliteräs, vakiokarkaisu
Kierrosnopeus: 2300, 2500, 3000, 3300 RPM

Kiinnnittimen tiedot

Viimeistely: Weatherex II
Käyttökohde: Ulkotilat
Kärjen tyyppi: Tyypin 17 leikkava kärki
teroituskulma: 23 °
Ruuvikannan tyyppi: Senco D25-kärki 25
Ruuvin kierteen tyyppi: 2/3 harva osakierre
Kamman/rullan kiinnikkeiden määrä: 50 - 50
Ruuvin pituus: 55.0 mm
Ruuvin halkaisija: 4.2 mm

CE merkinnät

Veto kannan läpi: 16.0 N/mm²
DOP No: 42W55MW
CE-merkinnässä ilmoitettu materiaali: Seostamaton teräs
Käyttöluokka: 3
Kierteen sisähalkaisija: 3.15 mm
Kierteisen osan pituus: 36.0 mm
Taivutusmomentti: 3283.0 Nmm
Vääntöarvo: ≥ 1,5 N/mm
Vääntövastus: 1.74 Nm
Vääntövoima: 3.47 Nm
Langan kapsiteetti: 4700.0 N
Normin versio: EN 14592:2008+A1:2012
Ulosvetoarvo: 12.0 N/mm²

Muut kuin tekniset tiedot

Pakkauksen määrä: 1000

Logistiset tiedot

Nettopaino: 3.67 kg

Vastaavat työkalut

Lataukset

42W55MW_fi_CommercialProductSheet_1.12_1752259134203 PDF 1 Mb
DOP VS-CPR-201305-S037 PDF 166 Kb
42W55MW_fi_DeclarationOfPerformanceDoP_1.4eu_1750124349442 PDF 62 Kb
