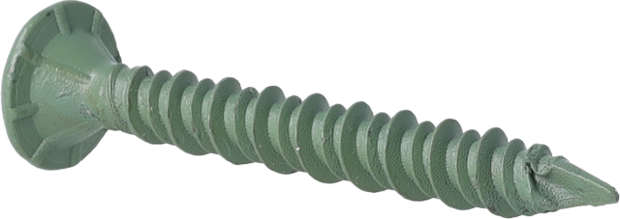

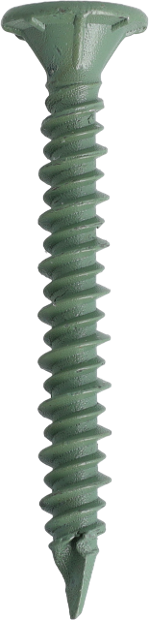

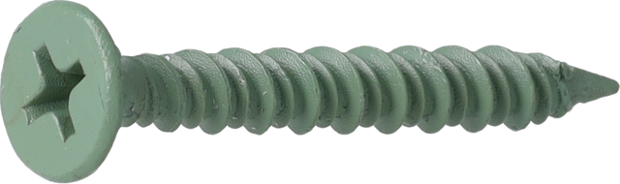

Nauharuuvi rappauslevylle PH2 weatherex 4,5x38mm

Klikkaa suurentaaksesi kuvaa

Kuvaus

Puulattia-/terassiruuvi puuhun, Weatherex II

Lue lisää Lue vähemmän

Normin versio EN 14566:2008+A1:2009

Eritelmät

Identifiointi

Nimike: 45US38MW
GTIN: 8718035002235

Tekniset tiedot

Sidostyyppi: Muovisidottu
Lankamateriaalli: hiiliteräs, vakiokarkaisu
Kierrosnopeus: 2500, 3000, 3300 RPM

Kiinnnittimen tiedot

Viimeistely: Weatherex II
Käyttökohde: Ulkotilat
Kärjen tyyppi: Lusikkakärki
teroituskulma: 30 °
Ruuvin kantaprofiili: Pieni kanta 4 senkillä
Ruuvikannan tyyppi: Philips 2
Ruuvin kierteen tyyppi: Hi-Lo
Kamman/rullan kiinnikkeiden määrä: 50 - 50
Ruuvin pituus: 38.0 mm
Ruuvin halkaisija: 4.5 mm

CE merkinnät

DOP No: 45US38MW
CE-merkinnässä ilmoitettu materiaali: Seostamaton teräs
Käyttöluokka: 3
Kierteen sisähalkaisija: 3.3 mm
Kierteisen osan pituus: 30.0 mm
Normin versio: EN 14566:2008+A1:2009

Muut kuin tekniset tiedot

Pakkauksen määrä: 1000

Vastaavat työkalut

Lataukset

45US38MW_fi_CommercialProductSheet_1.3_1752327973423 PDF 1 Mb
45US38MW_fi_DeclarationOfPerformanceDoP_1.0eu_1750168861121 PDF 58 Kb
